Surface Roughness Tester

GR110

Date:2023-02-20

GR110
GR110-1
NDT110-红色老机型-4
NDT110-红色老机型


NDT110-红色老机型-2
NDT110-红色老机型-3
NDT110-红色老机型-5
NDT110-红色老机型-8

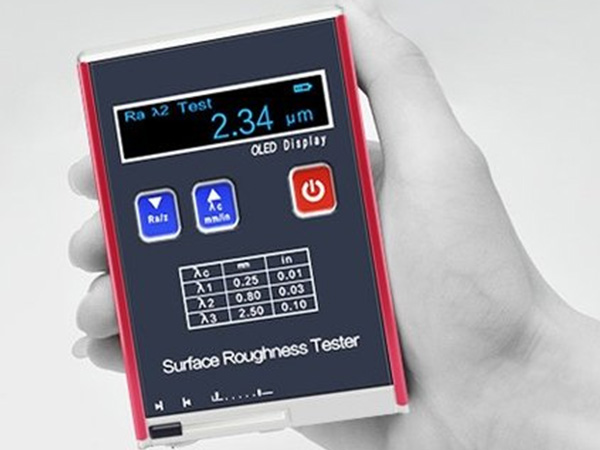

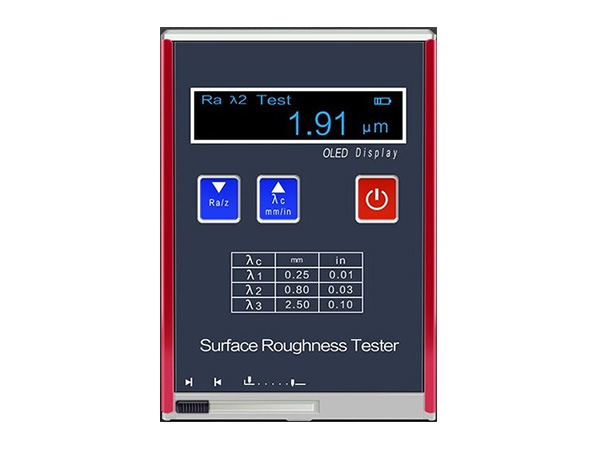

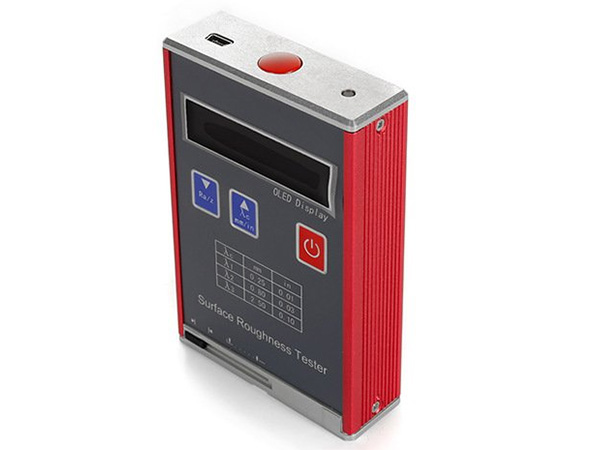

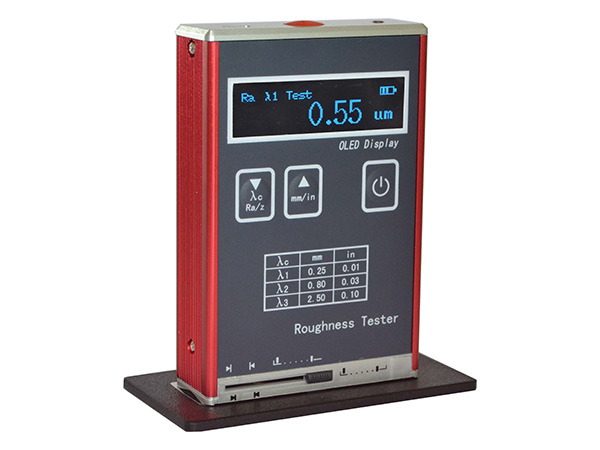

Surface Roughness Tester GR110

Features:

*Pull aluminum mould design, durable, anti-electromagnetism interference ability significant, accord with current design new trend.

*Using high-speed DSP processors for the data processing and calculation, measuring and calculation speed is greatly improved.

*OLED Display.

*Lithium ion rechargeable batteries. It is workable while charging.

*Use the common USB interface to charge.

*Dot matrix OLED display, interface message is rich.

*Battery indicator.

*Automatic shutdown function.

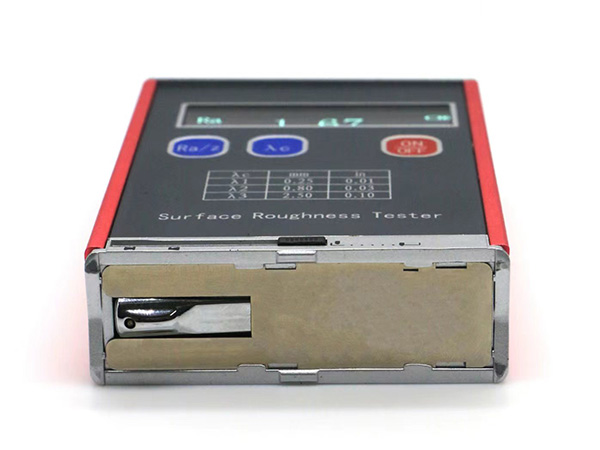

*The sensors head has the protect door, which protect the head of the sensors effectively. Guarantee the accuracy of measurement.

Functions:

*Measurement Parameters(µm):Ra Rz Rq Rt

*Stroke Length(mm):6

*Sampling Length(mm):0.25 ,0.80 ,2.50

*Evaluation Length(mm):1.25 ,4.0;

*Minimum Diameter measure: 20mm;

*Minimum Groove measure: 80 x 30mm;

*Measurement Range(µm ):

Ra, Rq: 0.05 ~ 15.0; Rz, Rt: 0.1 ~ 50

*Error of Indication:±15%

*Repeatability:<12%

*Touch needle tip arc radius and angle of the sensor

Tip arc radius:10 µm±1 µm

Angle:90

*The sensor touch needle static force measurement and its rate

Touch needle static force measurement: ≤ 0.016N

Force measurement rate: ≤ 800N/m

*Sensor guide head pressure: ≤ 0.5N

*Battery:3.7V Lithium Ion battery

*Contour Dimension:106 mm×70 mm×24 mm

*Weight:200g

*Working Environment Conditions

Temperature: -20℃~40℃

Relative Humidity: < 90%
