Vibration Meter
GV200
Date:2023-02-20

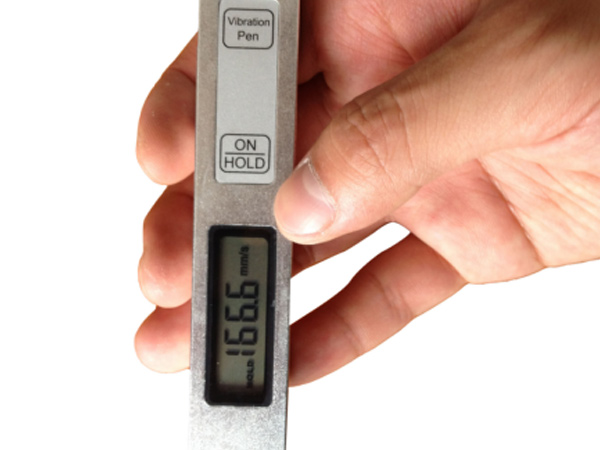

GV260 PEN Vibration Meter
Aluminum Alloy Case----Superior noise immunity and reliability
Features:
·Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.
·Compact size, small weight, easy handling
·Prompt testing of vibration on the workshop machines
·For quick checking of unbalance misalignment, bearings and gears
·Guard against mechanical malfunction
·Holding tested value for 40 seconds
·Automatic switch off after 40 seconds
·GV200 is used specially for velocity testing
·GV260 is used for acceleration, velocity and displacement testing
Technical Specifications:
Model | GV200 | GV260 |
Parameter | RMS of vibration velocity (mm/s) | Acceleration, Velocity, Displacement |
Testing range | Velocity: 0.1mm/s~ 199.9mm/s | Acceleration:0.1m/s2-199.9m/s2(peak) Velocity: 0.1mm/s-199.9 mm/s(RMS) Displacement: 0.001mm-1.999 mm (peak-peak) |
Frequency range | Velocity:10Hz ~ 1kHz | Acceleration: 10Hz ~ 1kHz(LO) 1kHz ~ 15kHz(HI) Velocity: 10Hz ~ 1kHz Displacement: 10Hz ~ 500Hz |
Continuous working | 30h | 20h |
Accuracy | ±5% ± 2digits | |
Display | 3 1/2 digits LCD | |
Power supply | two button batteries(LR44 or SR44) | |
Battery capacity | Approx. 5 hours working continuously | |
Operating temperature | 0℃ ~ 40℃ | |
Humidity | <85% | |
Dimension | 150mm×22mm×16mm |
NO. | Item | Quantity | |
Standard Delivery | 1 | Main unit. | 1 |
2 | Screwdriver | 1 | |
3 | Batteries SR44\LR44 1.5V | 2 | |
4 | Box | 1 | |
5 | Document | 1(set) |
Comparison table
Model | GV200&260 | TV200&TV260A |
Enclosure | More durable and reliable: {Aluminum alloy(Superior noise immunity and reliability)} | Plastic |
Data processing | Hardware integration circuit to improve the stability of measurement and significantly reduced the power consumption | Software data processing leads to high power consumption and poor reliability |
Measuring period | Measuring speed is Faster. {Measuring speed is About 1 sec/time} | Measuring speed is About 5 ~ 15 sec/time |
Power consumption(operating) | Continuous working time is longer. (30h/GV200; 20h/GV260) {Power consumption is about 9.5 mA} | Continuous working time is 8h-10h (GV200&GV260) {Power consumption is about 17 mA.} |
