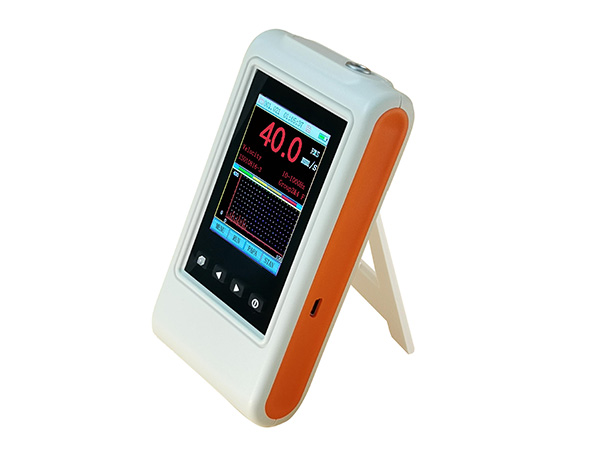

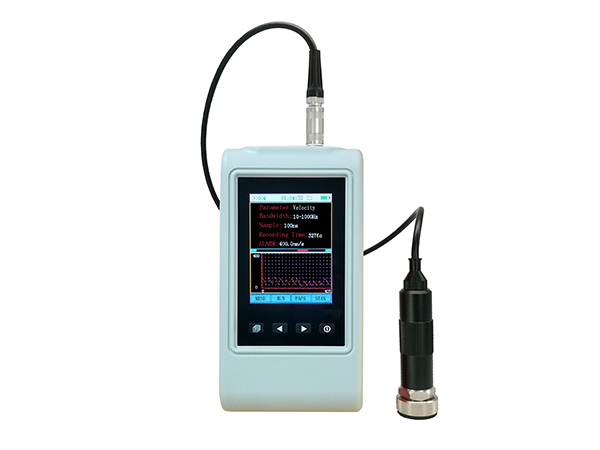

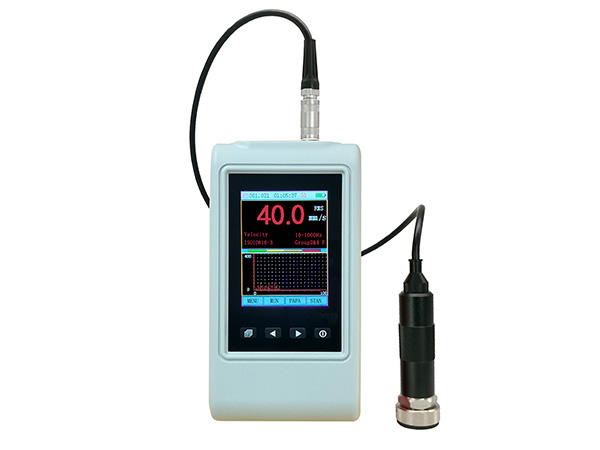

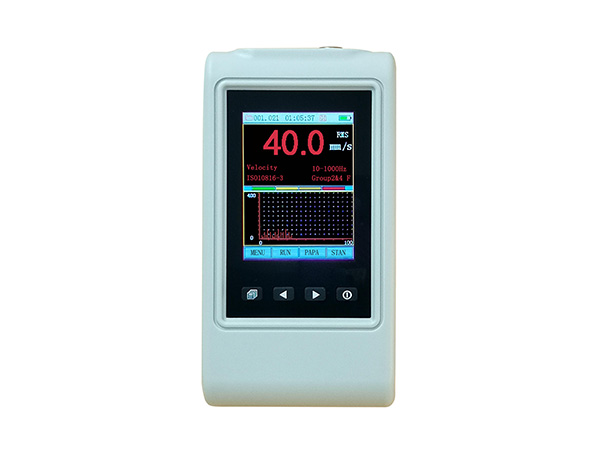

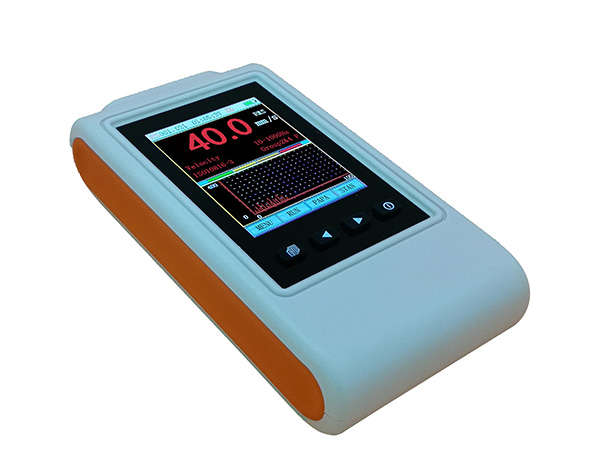

Vibration Meter
GV500
Date：2023-02-20
Portable Vibration Meter G5300
[Introduction]
GV500 uses piezoelectric acceleration transducer to convert vibration signalintoelectric signal. Then by analyzing input signal, results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also for rotational speed measuring.
The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), but also perform simple failure diagnosis.
The technical specifications of GV500 comply with the requirements of GB 13823.3. GV500 is widely used in machinery, power, metallurgy, automobile and other industrial fields.
[Delivery]
| Standard Delivery | NO. | Item | Quantity |
| 1 | Main unit. | 1 | |
| 2 | Power Adapters | 1 | |
| 3 | Piezoelectric sensors | 1 | |
| 4 | Magnetic seat (with 2 bolts) | 1 | |
| 5 | Manual | 1 | |
| 6 | Package case | 1 | |
| Optional Accessories | 7 | Probe | 1 |
| 8 | Software | 1 |
[Specifications]
| Testing range | Acce: 0.1 m/s2 ~ 400.0 m/s2(peak) Velo: 0.01 cm /s ~ 400.00cm /s(RMS) Disp: 0.001mm ~ 4.0 mm(peak-peak) |
| Freq range | Acceleration: 10Hz ～ 1kHz；1kHz ～ 10kHz Velocity: 10Hz ~ 1KHz Displacement: 10Hz ～ 1kHz |
| Data memory | 15000 sets of patrol data and 30-480 records |
| Software | Yes |
| Temp | 0℃ ~ 40℃ |
| Tolerance | ±5% |
| Display | 2.8’’ TFT 320×200 pixels with RGB |
| Data interface | USB |
| Overall dimensions | 140 × 76× 28 |
| Printer | Optional |
| Weight | 165g |
| Battery | Rechargeable Li battery,2000mAh |
| Continuous working time | About 20h |
